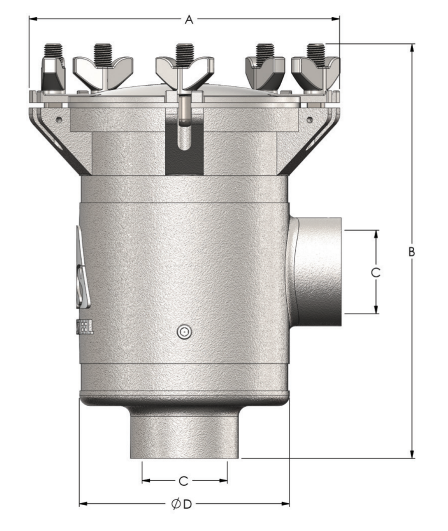

Arctic Steel - Sea Water Strainer - Side In Side Out (BISO) - Solid Lid
Suitable for applications where a superior corrosion resistant stainless steel is required to filter liquids. Commonly used to strain seawater for engines, generators, HVAC systems in vessels, however can be used for other liquids that require a high grade stainless steel filter to protect pumps, nozzles and injectors from large particles.
Applications
• Cooling systems on-board vessels
• Pumping dirty or contaminated liquids
• Protecting nozzles and injectors
• Highly corrosive liquids
• Large particles that may scour or destroy softer metals
Features
• Offset outlet for improved performance
• Secured by 5 wing nuts for safe, quick and easy access
• No tools required
• Swing down eye bolts eliminates need to remove nuts
• BSP thread inlet and outlet, flanges available on request
• Full height high impact resistant ABS basket
• Cast anode connection point to combat galvanic corrosion
Materials
• Body: Electropolished AISI 2205 cast stainless steel
• Lid: Electropolished AISI 2205 cast stainless steel
Available Option
• 316 stainless steel basket (can be customised)
• Clear polycarbonate or solid lid
