SISO Strainer with Clear Lid

(No reviews yet) Write a Review

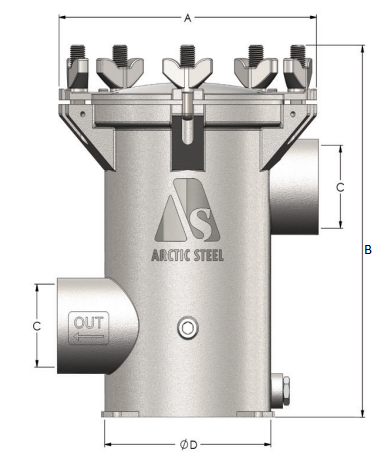

Arctic Steel - Sea Water Strainer - Side In Side Out (SISO) - Clear Lid

Suitable for applications where a high grade superior corrosion resistant stainless steel is required to filter liquids. Cast in duplex 2205 stainless steel this robust strainer with wing nuts and swing-down bolts requires no tools for service and maintenance. Suitable for use in marine environments, but also for commercial and industrial applications, straining oils, paint, chemicals, corrosive liquids, and any liquid that needs particles or contaminants removed to protect pumps, nozzles and injectors.

Applications
• Cooling systems on-board vessels
• Pumping dirty or contaminated liquids
• Protecting nozzles and injectors
• Highly corrosive liquids
• Large particles that may scour or destroy softer metals

Features
• Offset inlet and outlet for improved performance
• Free standing base mounted
• Secured by 5 wing nuts for safe, quick and easy access
• No tools required
• Swing down eye bolts eliminates need to remove nuts
• BSP thread inlet and outlet, flanges available on request
• Full height high impact resistant ABS basket
• Cast anode connection point to combat galvanic corrosion
• Drain plug
• Lower outlet position allows for applications that require a header tank or mounting above the waterline

Materials
• Body: Electropolished AISI 2205 cast stainless steel
• Lid: Electropolished AISI 2205 cast stainless steel ring with clear polycarbonate cover
Available Option
• 316 stainless steel basket (can be customised)
• Clear polycarbonate or solid lid

WEIGHT:
0.00 KGS
