Multiflex - Easy Connect - Mechanical Steering Cables - MF-SC-16-
The Multiflex SC-16-XX cables are a push-pull mechanical cable that converts the rotary motion of the helm to linear motion at the engine/rudder. One end of the cable is connected to the helm and the other end to the rudder.

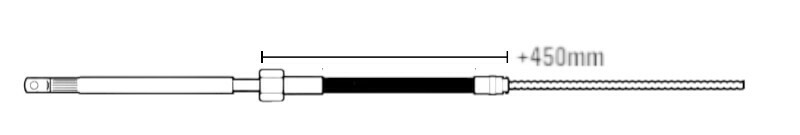

Measurement - Helm insert to tube nut + 450mm = cable length
Features
- High quality weather and abradion resistant outer conduit
- Internally lubricaled helical inner for frictionless movement
- Stainless steel output end fittings
- Stroke of cable: 230mm
- Minimum steering cable bend radius: 200mm
- Maximum working load at tiller end: 5000N (500kg)
- Exceeds ISO 8848 standards. Serial number with manufacturing month and year is marked on the cable for warranty claims
- Works with H1/H1.2/H1N/H3 helms
- Custom lengths available to be special ordered
SC-16-XX Cables are suitable for use within Mechanical Steering Systems
- Planetary 150 Mechanical Steering Systems
- Non-Reaction Planetary 150 Steering Systems
- Reduction 150 Mechanical Steering Systems
- Power Boats with engine up to 150HP
- Power Assisted Stern Drive Boars with maximum wheel diameter 16”
- Compatible with Dometic® / Seastar® part number SSC62 and Ultraflex® part number M-66
- WEIGHT:
- 0.20 KGS
