Yanmar Stainless Steel GMKIT Stainless Steel Exhaust - HDI-GMKIT
This HDI Marine item replaces Yanmar PN 128370-13600 / 128370-13610 / 128270-13600 / 124070-13520 / 128370-13610 / 104214-13521 / 104214-13531 / 128990-13520
- Precision CNC machined investment cast 316 stainless steel

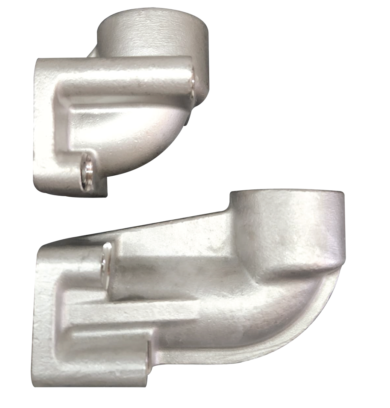

- Includes LH/RH yellow zinc plated stainless steel nipple as shown in photos replaces Yanmar PN 104214-13580
- This assembly is shipped hand-tight, with proper anti-seize applied to the threads. Will need tightened with tools before install.
- Includes bronze hose barb (water connection) that replaces Yanmar PN 124070-13300
- Includes gasket that replaces Yanmar PN 128370-13201
- Gasket size: 44mm x 72mm
- 3/8” pipe thread water inlet (5/8″ hose)
- 2” OD discharge diameter with 1-1/4 BSPT ID
- Product weight 5.5kg
Fits the following engines: 1GM, 1GM10, 3GM30, 3HM, 3HM35F, 2GM *lower elbow can differ*, GMF, 3HMF, 3GMF, 2GM20 *lower elbow can differ*, 2GM30, 2GM20F *lower elbow can differ*, 3GM30F, YSM12 *lower elbow can differ*, 3GM10, 3GMD, 2GM20, 2GM30, 2GM20F, 2YM-15 *lower elbow can differ*, 3YM-30 *lower elbow can differ*, 3YM-30 *lower elbow can differ*, 3YM-20 *lower elbow can differ* and 3HM35
*THIS DOES NOT FIT THE QM SERIES ENGINES*
*PLEASE NOTE THE DIFFERENCE IN THE LOWER ELBOW IN THIS KIT*
*SOME MODELS OF YM CAN HAVE A SHORTER LENGTH LOWER EXHAUST BEND*
- WEIGHT:
- 6.00 KGS
- mfg_code
- HDI-GMKIT
