Lowrance Transducer Armor Plates

Lowrance Transducer Armor Plates

Installing your transducer on a flat transom or pontoon boat? No problem! TSS Shim Kits make it easy to achieve the perfect mounting angle. Built specifically for custom transom installations, these kits allow you to effortlessly adjust from the standard 70-degree to a 90-degree angle. Each kit includes three different shim sizes, ensuring a precise fit for your unique setup.

An Armor Plate is designed to protect the transducer from side to side as well as front and back impact. An Armor Plate takes the place of the factory transom mounting bracket.  If the Armor Plate is installed anywhere other than on the transom, for example on the set back wall, some shimming may be required if the angle needs to be adjusted.

A Spring Back Bracket # SBB-5 is recommended when ordering an Armor Plate for all around transducer protection. If an Armor Plate breaks, which has been attached to the boat without a Spring Back Bracket, it has no warranty. Pictured with spring bracket is example only.

6061 High Quality Aluminium Alloy and Black Powder Coated. It is designed for installation on the boat transom and is pre angled to hold your transducer at 70 or 90 degrees needed for proper scanning while installed on standard bass boats.

Available in 3 types:

BMS-AP-AI-HD - To fit Lowrance Active imaging HD 3-in-1 transducer 000-16062-001

BMS-AP-AI-HD-90 Degree - To fit Lowrance Active imaging HD 3-in-1 transducer 000-16062-001 on Pontoon boat

BMS-AP-TS-3D - To fit Lowrance/Simrad Total Scan 000-12396-001, LSS2 Structure Scan 000-10802-001, Structure Scan 3D 000-12396-001, Total Scan, Live Active Imaging 3-in-1 000-14489-001, or 2-in-1 000-14490-001

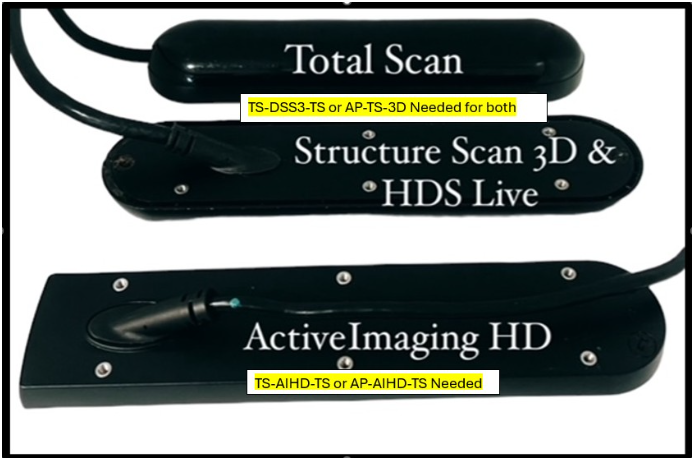

NOTE: Lowrance made this transducer very similar in name and shape as their other transducers. Please see the below the informational photo to ensure you are ordering the correct part for your corresponding transducer.

Proudly Designed and Built in the USA
